Three 10,000lb cell transducers, one inch mounting, 30,000lbs total system capacity, digital indication.

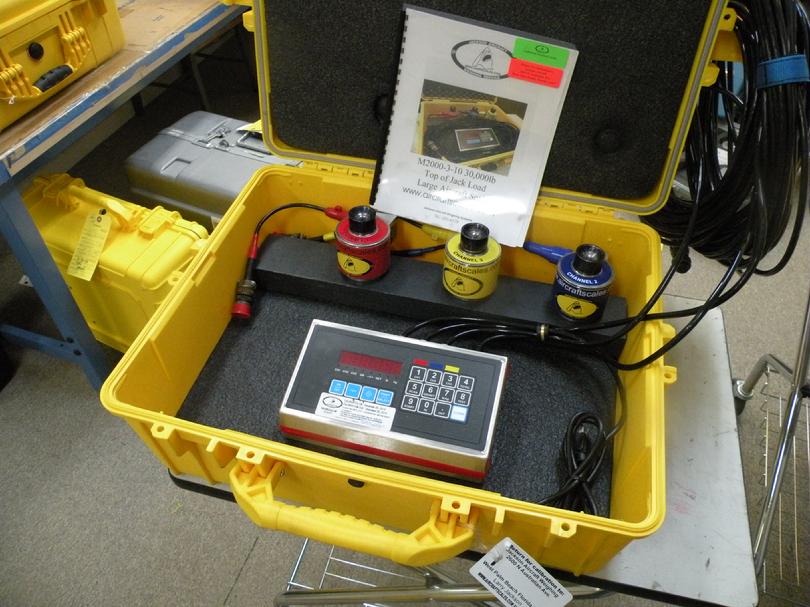

M2000-3-10CS Case Set Kit
M2000 three channel digital indication
Top of jack mounting
M2000 Features: Units conversion: lbs/kg Resolution: +/- 520000 A/D internal counts Sampling rate: 100 times a second per channel Span stability: 2ppm/deg C Zero Stability: 5nV/deg C Linearity correction: 10 span entries Calibration Method: calibration through software stored in flash memory Calibration Sealing: physical seal or Class1 Audit Trail system, password protected Tare: Keyboard and scale tare, multiple tare id's can be stored in memory Time and Date: Y2K compliant time/date clock, internal battery backup Power On: selectable on/off switch
Analog Output: optional 4-20mA board via Smart Wire Serial Output: 2 full duplex RS232/RS422 ports IO Interface: peripheral expansion through Smart Wire multi drop RS485 port External IO: up to 6 channel setpoint via Smart Wire Baud Rate: 150-32,400 bps, selectable Display: Size: 6 digit, 7 segment 1" red LED Filtering: Fast Step quick response algorithm adjustable filter
Modes: display from CH1, CH2, CH3, Scan, and total of all channels.
Electrical: Power Requirements: 110VAC 12VDC 1A TemperatureRange: -10deg C to + 40deg C Setpoints: 6 programmable setpoints per channel Sense Amplifier: differential amplifier with 4 and 6 wire RFI Protection: filtered signal, excitation and sense lines Approvals: Canada: Class III/IIIHD 10000 USA: NTEP Class III/IIIl 10000 OIML: Pending NIST traceable certification to calibration master. Two year warranty on parts and labor, calibration on sale.10% charge on returned sets for inspection, certification, calibration checks and restocking. Cell Specifications: ·Machined from steel to receive aircraft jack pads ·Calibrated to customer specifications ·Capacities are available in 5,000, 10,000, 15,000, 25,000, 30,000, 50,000 and 100,000lb cells ·Accuracy: 1/10th of 1% full span or better (factory calibration) 1/4 of 1% in the field or better ·One inch mounting on standard aircraft jacks ·Additional adapter mountings are available as an option (see below)
