M2400-3-50CS Full Wireless, Laptop Controlled, Large Jet Weighing Load Cell System

M2400-3-50CS

Three Large Cup Wireless Jack Point Load Cells for Corporate, Regional Jet, and Large Jet Weighing

50,000lb cell transducers, one inch mounting, 150,000lbs total system capacity, wireless USB antenna with laptop indication, laptop and all programming included and pre-loaded with full OEM NIST traceable calibration.

Key Features

  • Three 50,000lb load cells with one inch mounting studs
  • Wireless USB antenna for reliable connectivity
  • Laptop indication and programming included
  • Full calibration pre-loaded

Compatibility Options

We can also supply:

  • Aircraft Jack Ram Adapters
  • Top of jack adapters as well as Tronair inserts

System Benefits

  • Accurate load measurement and monitoring
  • Reliable wireless data transmission
  • Portable and easy to set up
  • Suitable for various Corporate, Regional Jet and Large Jet Weighing applications

Contact Information

For more information or to inquire about the M2400-3-50CS Wireless Load Cell System, please contact us. sales@aircraftscales.com or call us at 561-281-6179

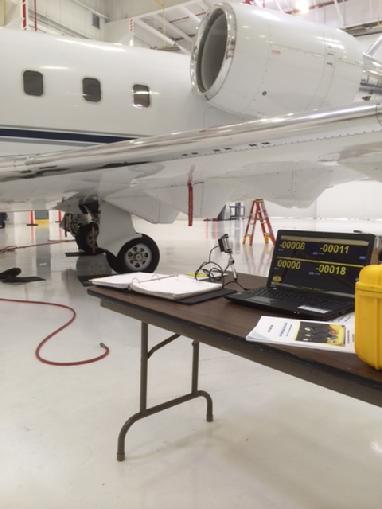

M2400 Jaws Software | Load Cell Monitoring of all cells at once with full print capabilities

M2400 Jaws Software

Load Cell Monitoring Solution

Providing full-scale output reading via the laptop computer, capable of printing a full report.

Key Features

  • Each channel available for individual reading or see them all on one screen
  • Total of all indicators displayed

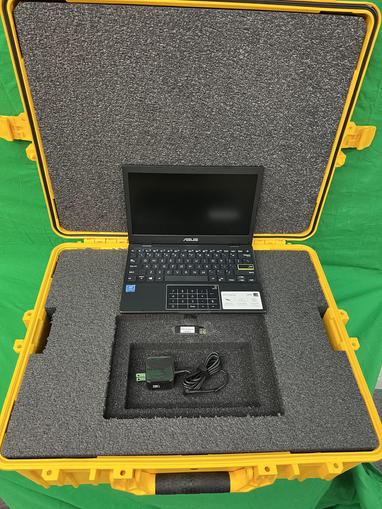

  • Software preloaded on standard 11.6 inch laptop (included)
  • Compatible with customer's laptop or any PC running Windows 10 or above
Wireless Load Cell System Specifications

Our Wireless Systems Have Many Features

Key Specifications

Sealed, waterproofed wireless sensor network unit designed to integrate with load cells.

  • Network capable allows several load cells to be active and used for different applications.
  • IP65 NEMA4 enclosure measuring 59 x 76.6 x 30mm.

Power and Range

A complete battery-powered module running AA standard batteries.

  • Provides up to 300 ft in range.
  • Exceptionally low power for long battery life (up to 1 year and three months tested on AA batteries).

Performance Features

  • High speed 200 updates per second.
  • High Resolution up to 1 part in 400,000 (18bit).

Connectivity and Calibration

The integral antenna supplied on the module, USB antenna supplied for laptop computer, PC or tablet operation.

  • The high accuracy, low noise measurement deliver high resolution, low drift results.
  • Results can be user-calibrated over 9 points to enable linearization and to deliver results in user-definable engineering units.

Radio Technology and Approvals

Licence-free 2.4GHz direct sequence spread spectrum (DSSS) radio technology.

  • High integrity, error-free communications.
  • Co-exists with Wi-Fi, Bluetooth, and Zigbee.
  • FCC, ETSI, and IC approvals.



General Radio
ParameterMinTypicalMaxUnits
Licence   Licence Excempt
Modulation Method   MS (QPSK)
Radio Type   Transceiver (2 way)
Data Type   250   K bits/sec
Radio Freqeuncy  2.4000   2.4835 GHz
Power   1   mw
Integral Antenna     100 (325) Metres (feet) **
External Antenna      200 (650) Metres (feet) **
Channels (DSSS)   16
Electrical
Battery Supply Voltage 2.1 3.0 3.6 VDC
Environmental
IP Rating   IP65 / NEMA 4
Operating Temperature Range* -40 - +65* °C
Storage Temperature Range -40 - +85 °C
Humidity 0   95% RH
Specifications with 100R bridge, 2.25mV/V at 3V supply at 25 Deg C
Strain Gauge excitation System   4 wire
Strain gauge Excitation Voltage 4.5 5 5.25  VDC
Strain Gauge Drive Capacity 85  - 5000  Ohms
Maximum Gauge Sensitivity (FR)     3.2 ±mv/V
Offset Temperature Stability   1 4 ppm/C
Gain Temperature    3 5 ppm/C
Offset Stability with Time   20 80 ppm of FR (1)
Gain Stability with Time     30 ppm of FR (2)
Non Linearity before Linearization   5 25 ppm of FR
Internal Resolution   16,000,000/24   Resolution/Bits
Noise Free where Sample Time < 10mS   50,000/15.5    Resolution/Bits
Noise Free where Sample Time < 50mS   65,000/16    Resolution/Bits
Noise Free where Sample Time < 100mS   150,000/17.25   Resolution/Bits
Noise Free where Sample Time < 1000mS   250,000/18   Resolution/Bits
Noise Free where Sample Time > 1000mS   400,000/18.75   Resolution/Bits

Complete wireless system, calibrated and ready to work! Order yours today. Shipping cost is not included in our quotes.
