M2000-3-10KP
Three 10,000lb platfroms, three 30 inch long 7 degree cast aluminum ramps for easy pull up, 30,000lbs total system capacity, digital indication.
System packs up in 5 boxes:
1 @ 88lbs Ramps (three each in a bundle)
1 @ 17lbs Indication and cables
3 @ 38lbs Platforms
|
 |
| Our new 2021 platform with M2000 digital indication. |
|
|
 |

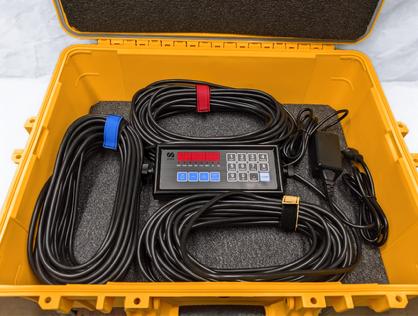

| M2000 three channel digital case unit, 50ft cables, 10,000lb platforms with 30 inch aluminum ramps, OEM NIST traceable calibration included. Click the picture to go to our online quote page. |
|
|
Want wireless? We have M2400 series laptop computer kits, and our HH2400 series Hand Held wireless transceiver series.Available in weight ranges: 5,000 lbs, 10,000 lbs up to 15,000 lbs per platform. Standard size of 12 x 16 X 2.75 inches with 30 inch long ramps. Cast aluminum ramps are reinforced for more weight. Call us today at 561-281-6179 and we will be glad to answer any questions you may have. Just ask for Larry Jackson!
|
 |
| Wireless Laptop 10,000lb platforms with 30 inch aluminum ramps, OEM NIST traceable calibration included. Click the picture to go to our online quote page. |
|
|
 |
| Wireless Hand Held HH2400 series, 10,000lb platforms with 30 inch aluminum ramps, OEM NIST traceable calibration included. Click the picture to go to our online quote page. |
|
|
|
M2000 Features:
Units conversion: lbs/kg
Resolution: +/- 520000 A/D internal counts
Sampling rate: 100 times a second per channel
Span stability: 2ppm/deg C
Zero Stability: 5nV/deg C
Linearity correction: 10 span entries
Calibration Method: calibration through software stored in flash memory
Calibration Sealing: physical seal or Class1 Audit Trail system, password protected
Tare: Keyboard and scale tare, multiple tare id's can be stored in memory
Time and Date: Y2K compliant time/date clock, internal battery backup
Power On: selectable on/off switch
Communications:
Analog Output: optional 4-20mA board via Smart Wire
Serial Output: 2 full duplex RS232/RS422 ports
IO Interface: peripheral expansion through Smart Wire multi drop RS485 port
External IO: up to 6 channel setpoint via Smart Wire
Baud Rate: 150-32,400 bps, selectable
Display:
Size: 6 digit, 7 segment 1" red LED
Filtering: Fast Step quick response algorithm adjustable filter
Modes: display from CH1, CH2, CH3, Scan, and total of all channels.
Electrical:
Power Requirements: 110VAC 12VDC 1A
Temperature Range: -10deg C to + 40deg C
Setpoints: 6 programmable setpoints per channel
Sense Amplifier: differential amplifier with 4 and 6 wire
RFI Protection: filtered signal, excitation and sense lines
Approvals:
Canada: Class III/IIIHD 10000
USA: NTEP Class III/IIIl 10000
OIML: Pending
NIST traceable certification to calibration master.
One year warranty on parts and labor, calibration on sale. 10% charge on returned sets for inspection, certification, calibration checks and restocking.
Platform Specifications:
· Machined from 6061 aircraft grade aluminum
· Calibrated to customer specifications
· Capacities are available in 5,000, 10,000lb platforms
· Accuracy: 1/10th of 1%
· Standard ramps are 30 inches long with a 7 degree incline for easy pull up
· M2000-3-5KP platforms are available, 5,000lb platforms with 16 inch long ramps for small aircraft and UAV applications
|
|
