M2400-3-10KP Wireless aircraft platform system $7495.00
M2400-3-10KP Wireless aircraft scale, three wireless 10,000lb platforms with 30 inch long wood plank type ramps for easy pull ups. USB antenna, laptop computer included running Win 8.
Wireless operation is accomplished with our USB antenna powered by a standard laptop computer running Win8. Platforms are self powered and have over a year of power on board, computer uses its on board battery supply so your system is completly wireless.

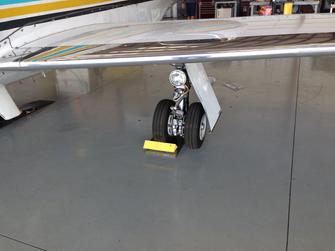

Small piston aircraft or medium jets like this Lear are easily weighed using our wireless kits. Dual wheels? No problem, our kit can weigh dual wheel aircraft using a single platfrorm as shown with one wheel off the side.

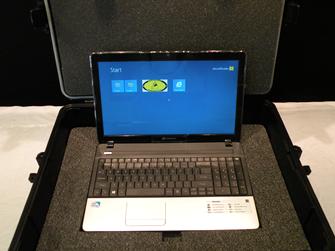

Windows 8 based laptop shown and is included in your price of only $7495.00. We can also use your laptop or send you our program to install on your computer. We runn XP, Win 7 and 8. Sorry no Apples
Our wireless systems have many features and below are some of our specifications:
Sealed water-proofed wireless sensor network unit designed to integrate with load cells. Network capable allows several load cells to be active and used for differant applications.
IP65 NEMA4 enclosure measuring 59 x 76.6 x 30mm
A complete battery powered module running AA or CC standard batteries, provides up to 300 ft in range
Exceptionally low power for long battery life (up to 1 year and three months tested on AA batteries)
High speed 200 updates per second
High Resolution up to 1 part in 400,000 (18bit)
The integral antenna supplied on the module, USB antenna supplied for laptop computer, PC or tablet operation.
The high accuracy, low noise measurement deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates up to 200 per second to other devices such as handheld tablet, PC or the standard laptop computer supplied.
The module is configured and calibrated (either by applying known inputs or by table entry) on a PC connected to the base station.
The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.
General Radio
Parameter
Min
Typical
Max
Units
Licence
Licence Excempt
Modulation Method
MS (QPSK)
Radio Type
Transceiver (2 way)
Data Type
250
K bits/sec
Radio Freqeuncy
2.4000
2.4835
GHz
Power
1
mw
Integral Antenna
100 (325)
Metres (feet) **
External Antenna
200 (650)
Metres (feet) **
Channels (DSSS)
16
Electrical
Battery Supply Voltage
2.1
3.0
3.6
VDC
Environmental
IP Rating
IP65 / NEMA 4
Operating Temperature Range*
-40
-
+65*
°C
Storage Temperature Range
-40
-
+85
°C
Humidity
0
95%
RH
Specifications with 100R bridge, 2.25mV/V at 3V supply at 25 Deg C
Strain Gauge excitation System
4 wire
Strain gauge Excitation Voltage
4.5
5
5.25
VDC
Strain Gauge Drive Capacity
85
-
5000
Ohms
Maximum Gauge Sensitivity (FR)
3.2
±mv/V
Offset Temperature Stability
1
4
ppm/C
Gain Temperature
3
5
ppm/C
Offset Stability with Time
20
80
ppm of FR (1)
Gain Stability with Time
30
ppm of FR (2)
Non Linearity before Linearization
5
25
ppm of FR
Internal Resolution
16,000,000/24
Resolution/Bits
Noise Free where Sample Time < 10mS
50,000/15.5
Resolution/Bits
Noise Free where Sample Time < 50mS
65,000/16
Resolution/Bits
Noise Free where Sample Time < 100mS
150,000/17.25
Resolution/Bits
Noise Free where Sample Time < 1000mS
250,000/18
Resolution/Bits
Noise Free where Sample Time > 1000mS
400,000/18.75
Resolution/Bits
Call 561-281-6179 or email us at: larryjackson@jawsscales.com
